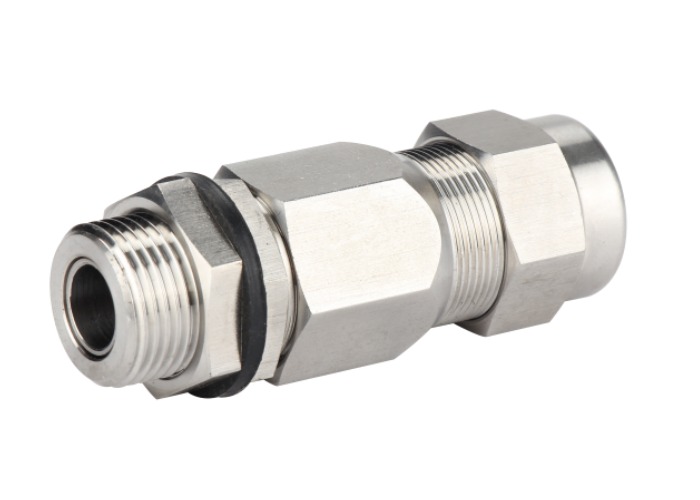

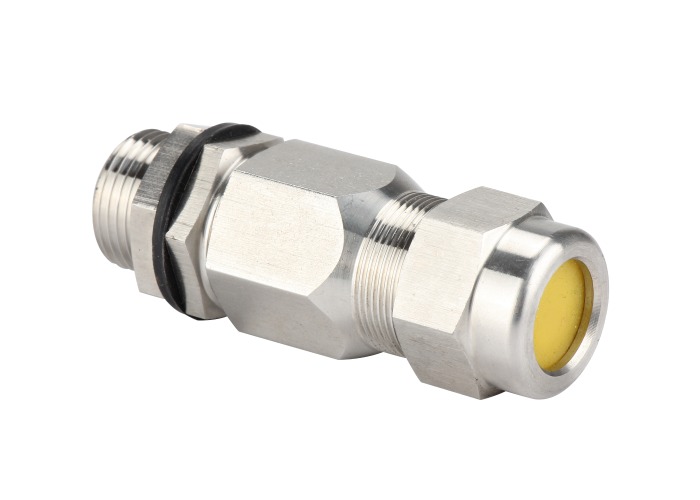

M20 Armoured Cable Gland
20mm swa armoured cable gland installed in the armoured SWA cable with outer diameter size from 7mm-15mm in mm. It could be designed as single compression or double compression according to customers’ requirements.
Made of metal material such as stainless steel or brass, 20mm swa armoured cable gland has an explosion-proof function and is installed in hazardous areas such as zone 1 and zone 2.
20mm swa armoured cable gland fitting matches aluminum XPLE cables with different cores, such as 3 core, 4core, and 5 core, the outer diameter size ranging from 7mm to 15mm. It could fit with earthing tag, and shrouds to ensure the earthing function for the steel wire.
20mm swa gland fitting used for indoor and outdoor applications in harsh environments. As an IP-rated swa cable gland, it has IP66 waterproof grade, which could ensure the isolation from dust, water, and moisture.
